Black Box 日本法人 製品 > KVM > 大規模向けKVMスイッチ > Emerald® KVM Multiviewer – 4-Port, Dual-Monitor, Single-Head, DisplayPort, 4K60
Emerald® KVM Multiviewer – 4-Port, Dual-Monitor, Single-Head, DisplayPort, 4K60

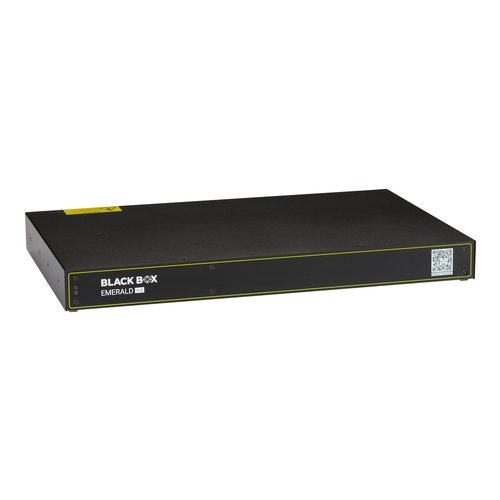

掲載写真は類似商品になります
EMD4010DP-VUE: DisplayPort 1.2 (4), 4 ポート, 2x USB HID, 2x USB 2.0, audio
EMD4010DP-VUE: DisplayPort 1.2 (4), 4 ポート, 2x USB HID, 2x USB 2.0, audio
EMD4010DP-VUE: DisplayPort 1.2 (4), 4 ポート, 2x USB HID, 2x USB 2.0, audio
EMD4010DP-VUE: DisplayPort 1.2 (4), 4 ポート, 2x USB HID, 2x USB 2.0, audio


Emerald® KVM Multiviewer – 4-Port, Dual-Monitor, Single-Head, DisplayPort, 4K60


Single-Head switch combines 4K60 DisplayPort 1.2 video signals and USB


  • Display four local sources on two 4K monitors simultaneously.
  • Switch DisplayPort video sources in real-time via keyboard commands.
  • Supports 4K60 DisplayPort input/output video signals.
  • Combine multiple inputs on a single display, saving costs and maximizing valuable screen space.
  • Tailor your output using various display modes to merge video content according to your preferences.
  • Redundant power supply ensures fail-safe operation

  製品       型番   単価   数量
DisplayPort 1.2 (4)
4 ポート

2x USB HID, 2x USB 2.0, audio
  Emerald® KVM Multiviewer – 4-Port, Dual-Monitor, Single-Head, DisplayPort, 4K60
Emerald® KVM Multiviewer – 4-Port, Dual-Monitor, Single-Head, DisplayPort, 4K60
  EMD4010DP-VUE
オープン


アクセサリ

  製品     型番   単価   数量

  DisplayPort ケーブル ラッチ付 オス / オス 4K 60Hz Ver. 1.2 - ビデオ ケーブル, DisplayPort から DisplayPort, オス / オス, 0.9m
DisplayPort ケーブル ラッチ付 オス / オス 4K 60Hz Ver. 1.2
  VCB-DP2-0003-MM
オープン

  DisplayPort ケーブル ラッチ付 オス / オス 4K 60Hz Ver. 1.2 - ビデオ ケーブル, DisplayPort から DisplayPort, オス / オス, 1.8m
DisplayPort ケーブル ラッチ付 オス / オス 4K 60Hz Ver. 1.2
  VCB-DP2-0006-MM-R2
オープン

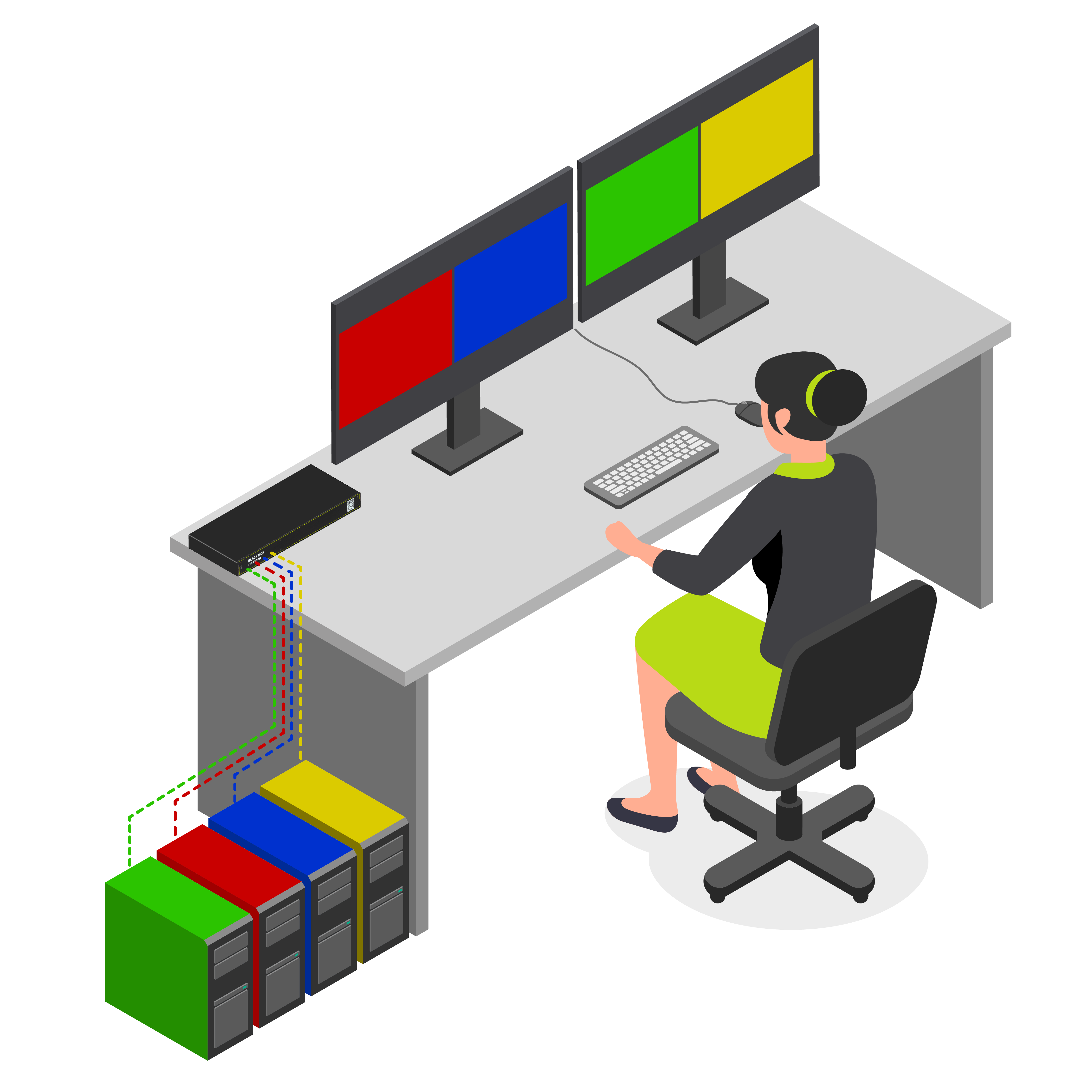

In crucial control room applications where people and equipment safety are at risk, the stakes are high. Control room personnel need a birds-eye view of system status at a moment's notice. Display up to four screens on one monitor at the same time with 4K resolution. This Multiviewer enables 4:2 single-head visualization.

You can arrange the individual windows freely and display them in different modes: Full-screen, Quad-screen (Quad), Picture-in-Picture (PiP), Preview, 2+2, and Free. Presets allow instant switching between the desired layouts.

Easy Switching
Switch between the DisplayPort video sources in real-time via keyboard commands.

Customized Audio
Tailor audio output to your specific needs. The KVM Multiviewer outputs embedded audio signals to a loudspeaker via a separate audio interface. Set it to output either the audio track of the currently active screen or combine the various audio signals so you can hear relevant signal tones at any time, regardless of the source.

Fail-Safe
In critical control room applications, you can't afford downtime. Built for 24/7 operation, the Multiviewer has redundant power supplies and extensive SNMP options for status monitoring (video, PSU, and switching status).

Space-Saving
Compact multiviewer fits where space is at a premium.
